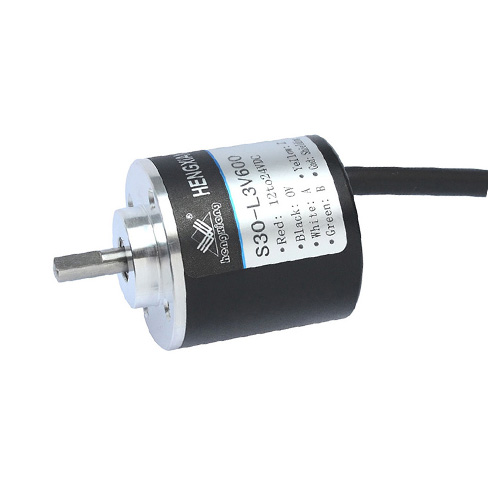

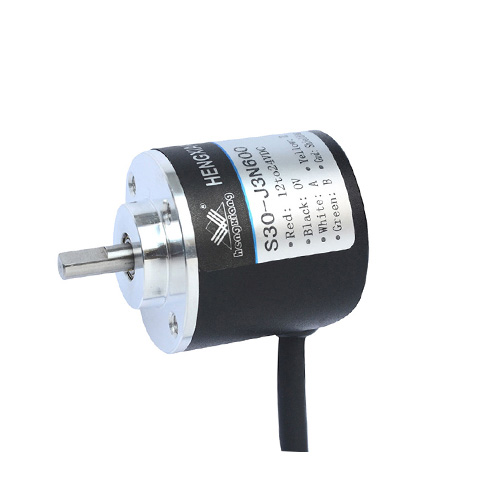

S30 incremental Rotary encoder small optical encoder 1024ppr encoder 5000rpm aluminum alloy material

Feather of S30 series encoder

Encoder type: Incremental encoder

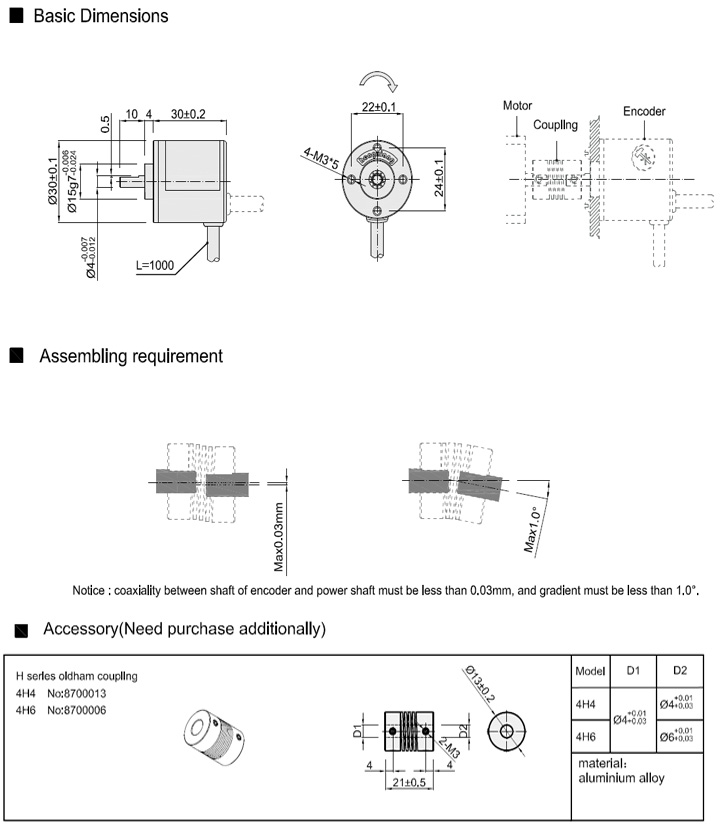

External diameter: 30mm

Shaft diameter: 4mm (D type)

Environmental temperature: Operating temperature: -20~+80° (Non icing)

Protection grade: IP50

Cable length: 1000mm

Principle of encoder

A logic gate interprets certain input voltages as high (logic 1) or low (logic 0).

TTL (transistor-transistor-logic): A signal above 2 V is interpreted as logic 1 and a signal less than 0.8 V is interpreted as logic 0. The output voltage ranges between 0-5 V.

HTL (high-threshold-logic): A signal above 3 V is a logic 1 and a signal less than 1 V is a logic 0. The high output signal level is dependent from the supply voltage. Because of the higher voltage difference between logic 0 and 1, the HTL logic is more immune to interference and more resistant against electrical noise.

Mechanical degree is the actual rotation of the shaft in degrees. Electrical degree is used for electrical signals. The required time for completing one alternating voltage/current cycle is defined as 360 electrical degrees (el°). For incremental encoders, one cycle is equal to one complete pulse. With a given PPR the electrical degree can be converted to mechanical degree for any incremental encoder.

Product Description

More details

About HENGXIANG encoder Factory

our factory founded in 2001, ,main encoder products are China rotary encoder, incremental encoder, absolute encoder, magnetic

encoder, servo motor encoder, cnc rotary encoder,

encoder module, encoder disc, encoder code, solid shaft encoder, hollow shaft encoder, spindle encoder,elevator encoder, industry encoder, etc

we could offer all kinds of encoders according to customer's requirements.

After more than 17 years of continuous development and efforts, our factory has built the engineer team,including 5-7 professional

engineers, both are highly experienced in study and develop in high technology of encoder.

As a professional manufacturer of rotary encoders, our factory independently develops dozens of product series, which are widely

used in elevators, servo motors, CNC machine tools, textile machinery, robots, wind power,

medical, assembly lines and other automation industries, with operations in 34 provinces and cities nationwide.

And more than 170 countries and regions around the world, won the trust and praise of customers.

Our SHANGHAI HENGXIANG ENCODER FACTORY has obtained a number of invention patents and utility model patents, and passed

the “Shanghai High-tech Achievement Transformation Project” certification,

ISO9001 quality management system certification and CE certification.
Our aim: to meet customer needs, create social value, service with heart, and work together for a win-win situation!
We warmly welcome new and old customers at home and abroad to come to the field to inspect and select and customize “Hengxiang” products.

About Our Factory

o Own brand of "HENGXIANG" encoder

o Has ISO9001：2000 Quality Management System Certificate and CE Certification

o Invention patents five and utility model patents five

o Passed Shanghai New and High-tech Achievements Transformation Project.

o Our target: Meeting Client's Requirement、Creating Social value、serving clients attentively and Achieving win-win.

o Located in Shanghai city

o 20-30 experienced workers

Applications

· Petrochemical industry

· Pharmaceutical industry

· Food industry

· Gearbox

· DC garage door motor

· DC servo motor

· Stock driver

· PMDC geared motor

· Brushless dc motor

· Servo motor
